1、 Capable of loading, unloading, stacking, unstacking, hauling and feeding various forms of biomass raw materials. In particular, pile up high and send far.

2、 Energy saving and consumption reduction, green and environmental protection.

3、 Fire safety, ground protection, stability and reliability.

4、 One machine can be used for multiple purposes, and the efficiency is improved.

5、 High cost performance and convenient maintenance.

      Bada can do it!

Core technology 1—— customized equipment for straw raw materials

Over the past 30 years, Bada has been dedicated to the research and development of grichers, never following the trend of making general construction machinery, such as excavators, loaders, bulldozers, etc.

Living material power generation industry tailored straw raw material grab machine, is to meet the personalized market demand, is a professional equipment. From the investment in China's first biomass power plant, from the occupation of 60% of the market share of the domestic biomass power generation industry is enough to prove the credibility of Bada products.

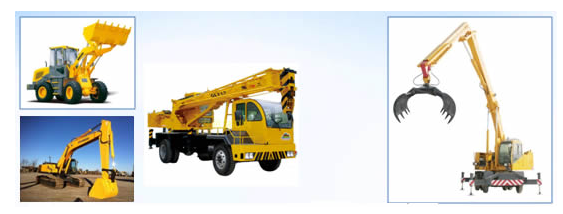

Compared with the automobile crane,

★ overcomes the shortage of the grip and the operation, and the poor grasping efficiency of the more solid material.

★ is relative to the loader loading load of straw, it can meet the stack requirements of 8m~12m, while the loader can only be below 4m.

Compared with the equipment restructured with excavator, its tire walking function is better than excavator crawler, transfer movement is convenient, fast and efficient, and does not damage the hardened smooth ground. At the same time, its pile height is far better than the excavator transformation.

★ can say: " Bada Heavy Industry's grip machine is the ideal equipment for loading and unloading, stacking, stacking, feeding and transporting grass reed, wood, bamboo, waste paper, and loose soft raw materials.

Core technology 2—— Oil-electric hybrid "dual power"

The "dual-power" technology created by Bada Heavy Industry is composed of two hydraulic power systems and one execution system driven by the internal combustion engine and the electric motor respectively. There are intercommunication, interlock, antihypertensive start, overcurrent, overload, overheating and leakage protection system, and the design of cable tracking automatic receiving and discharge device.

The outstanding advantages of dual power are that:

1. Under the year-on-year operation efficiency, the electricity operation cost is only 40% of the oil use;

We have made a calculation: large construction machinery in the internal combustion engine work, every 1Kw of power generated on the average fuel consumption of 220g(0.22kg), calculated by the real market price of 8 yuan / kg, namely 1.76 yuan.

Using the 380V mains electricity operation, the average electricity price is 0.7 yuan / kw, only 40% of the fuel cost.

So electricity can significantly reduce the cost than oil.

2. Small noise of electric operation, no waste discharge, and no pollution of the environment;

3. Electric operation can choose explosion-proof electric motors and fully enclosed electrical appliances for safe and fire prevention. Especially the biomass power plants such a key fire protection units.

4. According to the user needs, configure the operation timer, weight meter and other automatic functions to implement the integration of light, machine, electricity and liquid.

Core technology 3 - automatic lifting cab

The lifting cab developed by Bada won the national utility model patent (patent number: ZL2010201581574 ）。

 This cab lifting mechanism is installed on the grab, and the driver can automatically adjust the height of the cab, up to 5.6 meters, and the cab can also move forward 0.75 meters. As it is raised forward, the driver's vision is expanded and the work efficiency is improved, especially suitable for the stacking height of straw raw materials.

Core Technology 4——Hydraulic pilot control "Y" outrigger

The driver of the hydraulic tire type straw grabber independently controls the Y-shaped outrigger in the cab through the pilot operation system, which does not need to go out of the cab to the ground for operation, nor does it need the assistance of other personnel on the ground. It is convenient, fast and efficient, and has higher mobility than the crawler type and the H-shaped outrigger in the tire type.

Core technology 5 - customized gripper

Core technology 6 - 360 ° rotary gripper

A hydraulic rotator is installed above the grab to realize 360 ° omnidirectional rotation of the grab and greatly improve the operating efficiency of the equipment. It is especially suitable for grasping, loading and unloading, stacking, unstacking and other operations of baling and rod-shaped materials.

Products serve many industries

Bada products are suitable for railway freight, biomass power generation, light industry paper making, man-made board, petrochemical industry, port and wharf, metal recycling, urban construction, water conservancy engineering, mining and other industries.

Octopus products go global

Over the past three decades, Bada's products have been sold to thousands of domestic enterprises and exported to dozens of countries such as the United States, Belarus, Indonesia, Kazakhstan, Thailand, Vietnam and Myanmar. Looking forward to the future.

Bada Heavy Industry will base itself on the logistics machinery market and go to the world from a higher starting point.
